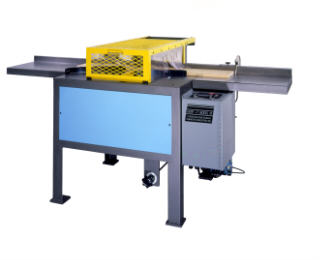

KERF-IT™ MODEL 10
Score your riser boards for ¼ and ½ round bullnose steps
with the Kerf-It™ automatic kerf cutting machine.
Adjust the depth of cut or spacing between cuts with just the turn of a knob.
Of course repeating the same job over and over again requires no adjustment.
Get consistent cut enabling you to easily bend solid wood boards to any radius
you like.
The Kerf-It™ Model 10 uses PLC technology to automatically cut saw blade
width kerfs in riser boards for 1/4 round/bull nose type stair construction.
Simple operation requires minimal training.
• Load riser board
• Set end of board
stop
• Press Run button
• Machine will
then cut notches automatically and continuously until board reaches end of board stop.
• After cutting,
the operator has a default choice of repeating pitch, depth and board length or changing selections.
FEATURES
• Minimal operator
training
• Runs unattended
• PLC control with
pneumatic power
• Full 2 HP
cutting power
• High speed
automatic cutting
• Does not require
programming
• Standard 10”
blade capacity
• Heavy duty steel
construction
• Riser capacity
4” to 12” by ¼” to 1½”
• Operator choice
of notch depth
• Operator choice
of notch pitch
• Operator choice
of board length
SPECIFICATIONS
Footprint w/o Overhang....................... 33” x 36”
Footprint w/options & overhang......... 45” x 85”
Height w/cover down........................... 41”
Weight................................................... 600 lbs.
Motor Power Required........................ 220VAC 3PH 20A
Control Power Required...................... 115VAC 1PH
Air Required.......................................... 80 psi clean and dry
Saw Blade Capacity............................ 10” dia x 5/8” hole
